Heavy Duty Paper Core And Cardboard Shredder
video
Heavy Duty Paper Core And Cardboard Shredder

Heavy Duty Paper Core And Cardboard Shredder

Supu heavy duty paper core and cardboard shredder,1500mm width shredding width easy to process any kinds of cardboard and paper sheet recycling,durable construction with high efficiency motor can shred more than 500 kg per hour
product-1-1

Are you looking for a rugged, efficient document shredder to match your die cutter?
We have a solution for you! Our shredders are designed for efficient and trouble-free processing of all types of paper.
Equipped with three shredding rollers, this shredder shreds paper into small pieces quickly and safely. As a result, the die cutter will be able to work with higher efficiency, which will help increase your productivity.

The Three Shaft Shredder is designed to shred waste from die cutting machines for easy transport using a belt system. We can adjust the machine parameters according to the specific punching press.
Our Document Shredder is also very easy to use. It has a Siemens controller to prevent overload and an overload sensor to control the operation of the motor. The Three Shaft Shredder has the ability to pull material to ensure safe work and prolong equipment life.
Contact us and our experts will help you choose the best solution for your company.



Heavy duty paper core and cardboard shredding machine

Supu heavy duty paper core and cardboard shredder,1500mm width shredding width easy to process any kinds of cardboard and paper sheet recycling,durable construction with high efficiency motor can shred more than 500 kg per hour



Technical features of three-shaft shredder:
Rugged rotor blade cutting system with sweeper shaft
Separately mounted, replaceable cutterheads
Central rotatable screen basket
Diaphragm seals to protect shaft bearings
Mechanical and hydraulic drive systems available
PLC unit has automatic reverse and power off function

4
6
8
7

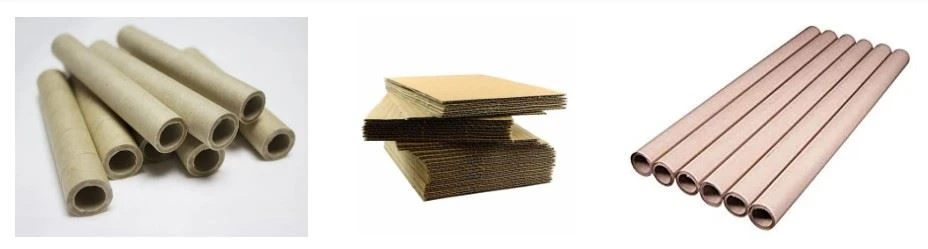

Specially used for shredding waste cardboard, paper, box and paper core etc

paper core cardboard



Data Sheet

Model
SPW150
Maximum Cardboard Feeding Width
1500mm
Maximum Paper Core Diameter
220mm
Maximum Paper Core Thickness
30mm
Maximum Cardboard Thickness
80mm
Blade Shaft Rolling Speed
480 r /min
Main Motor Power (KW)
15 KW
Shredding Capacity
500-1000 KG/hr
Machine Weight (KG)
2800 KG
Machine Size
2130 (L)* 1630 (W) * 1849 (H) mm
